1050 CFM Gen 3 Ultra Dominator Carburetor. Features:

ULTRA light all aluminum construction saves 3.8 lbs.

New or modified fuel lines are required (if replacing existing Holley Dominator 4500 series carburetor - previous bowl machining was 7/8-20, Aluminum Ultra Dominator carburetors come assembled with -6AN to SAE 8 port fittings). Center to center fuel inlet measurement is now 11.5"

Shiny with black anodized billet aluminum metering block and booster inserts

Designed for use on Drag race, Pro Street, or any high horsepower engines

Calibrations optimized for today's larger race engines and new fuels

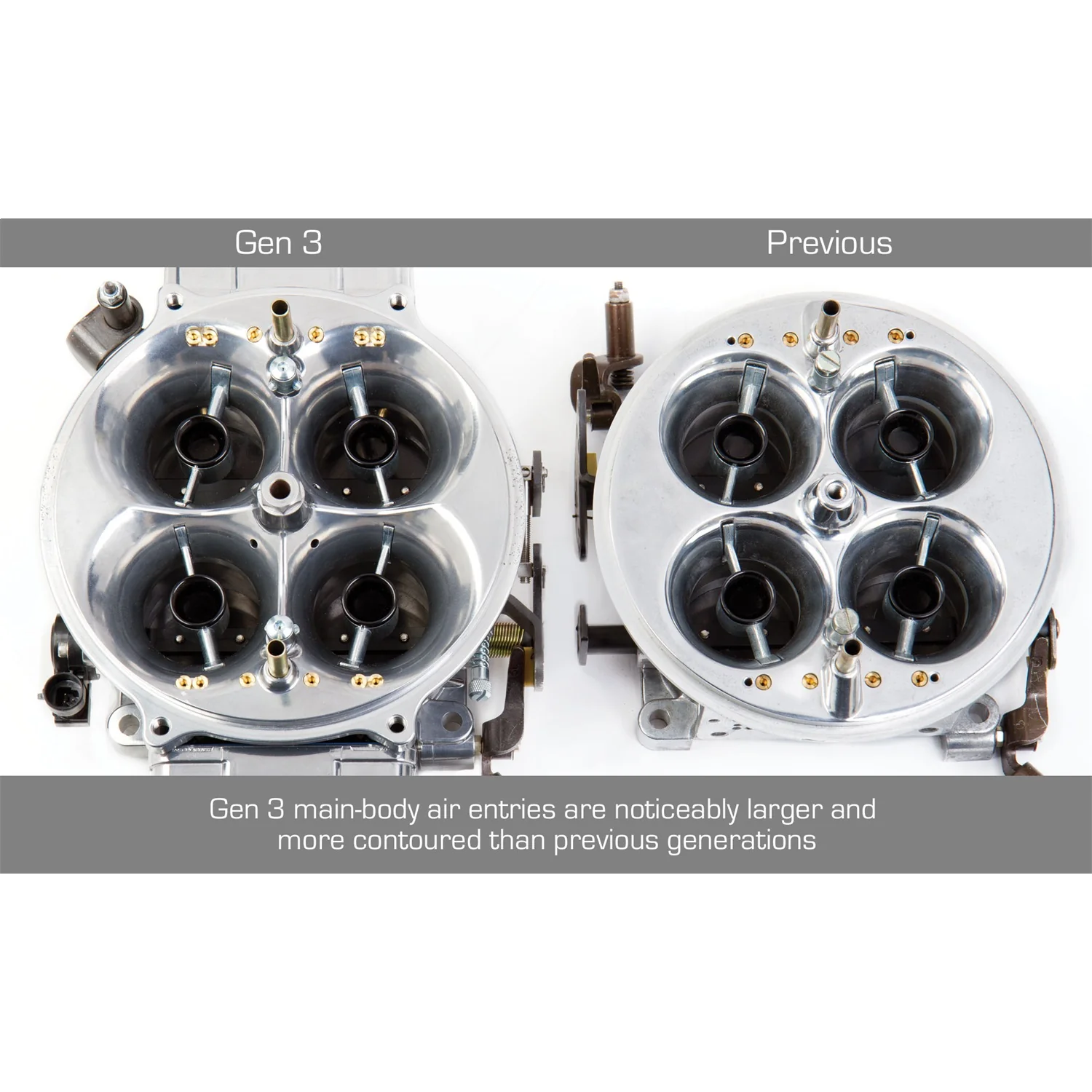

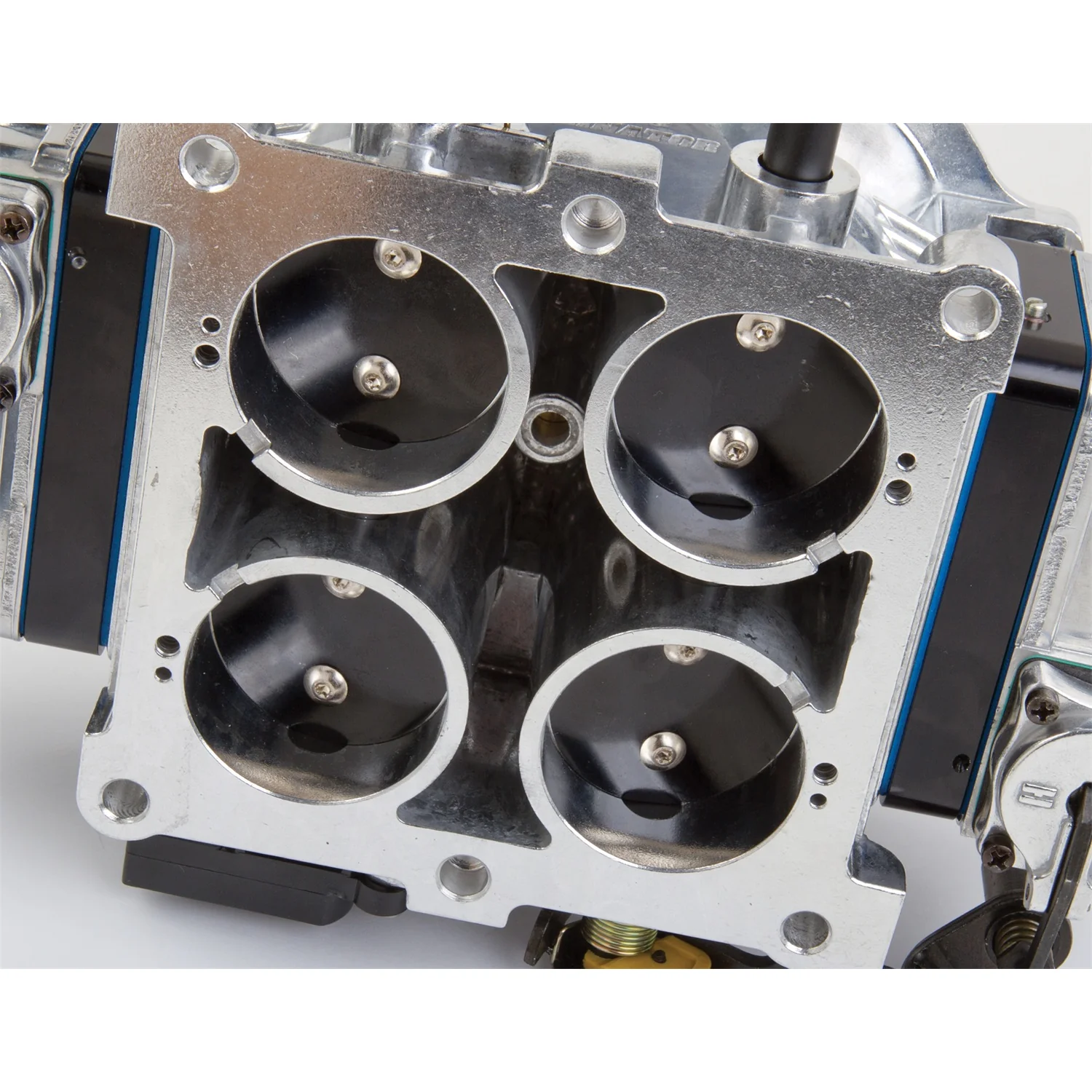

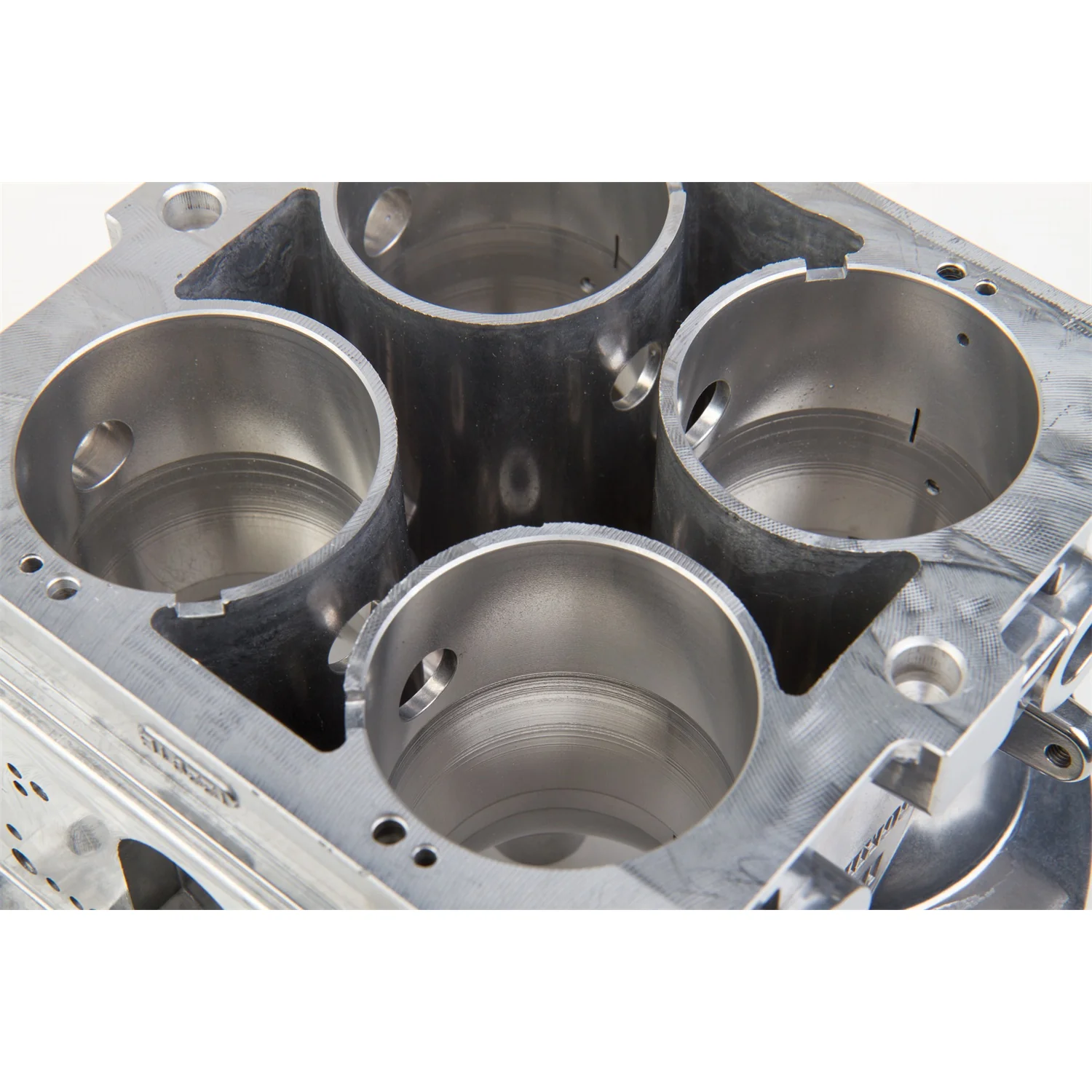

Fully machined from venturii throat to throttle bore for predictable & repeatable performance

Integrated idle bypass valve allows for adjustment of idle while maintaining correct throttle plate to transfer slot relationship

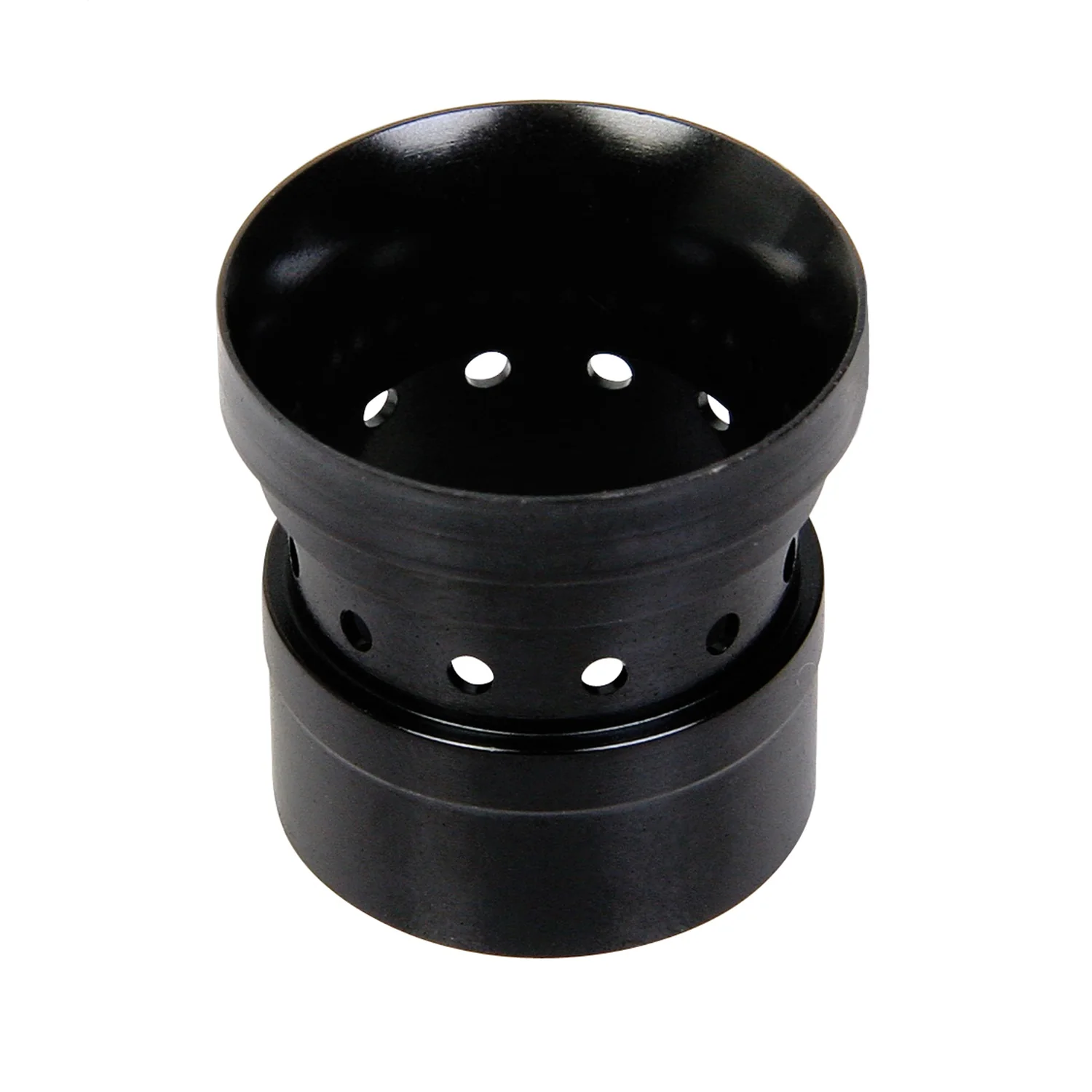

12 hole billet booster inserts for superior atomization and crisp throttle response

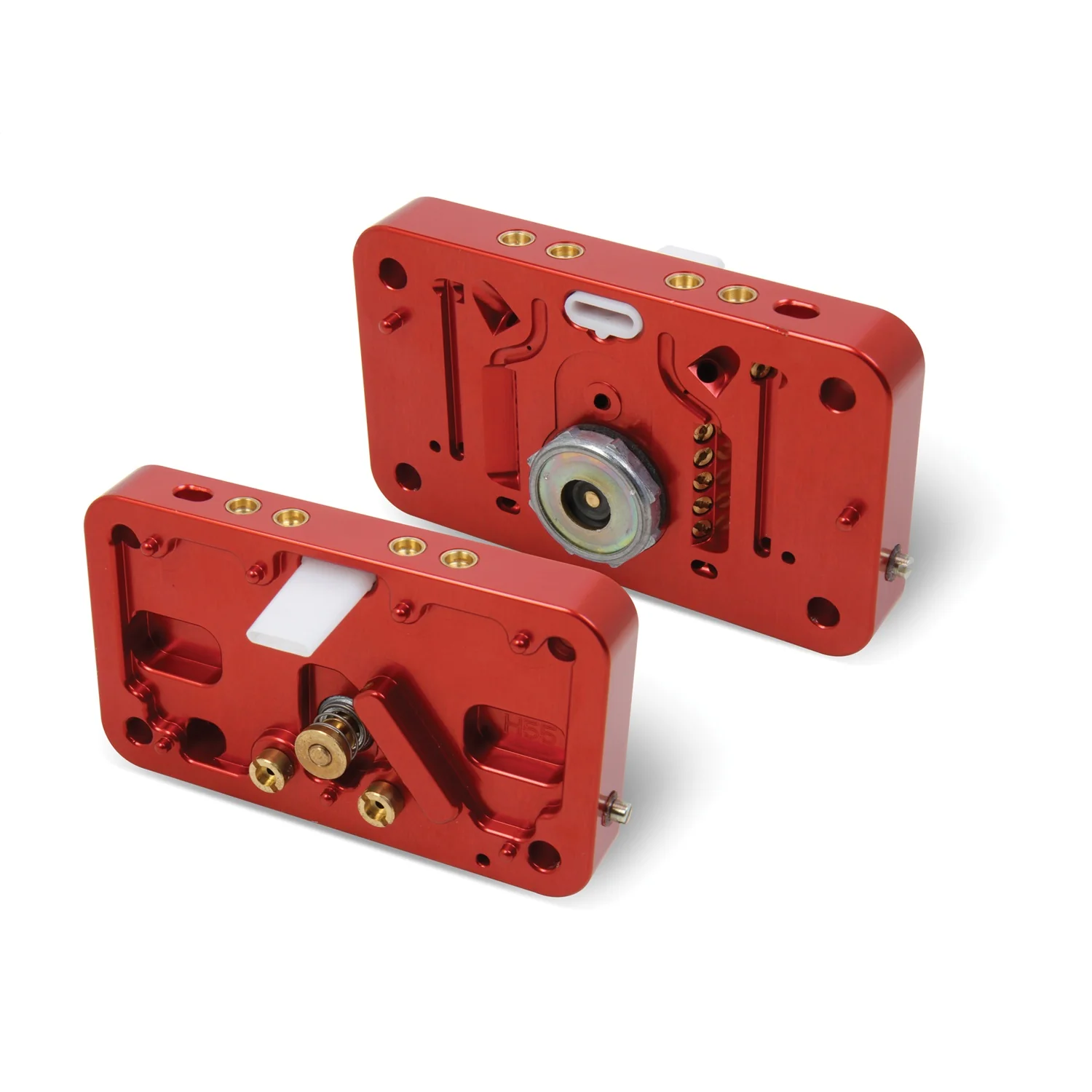

Metering blocks feature improved durability, true gasket sealing and fully adjustable (emulsion bleeds, power valve channel restrictors & idle feed restrictors)

Dual 50cc accelerator pumps provide the perfect amount of fuel from idle to full throttle

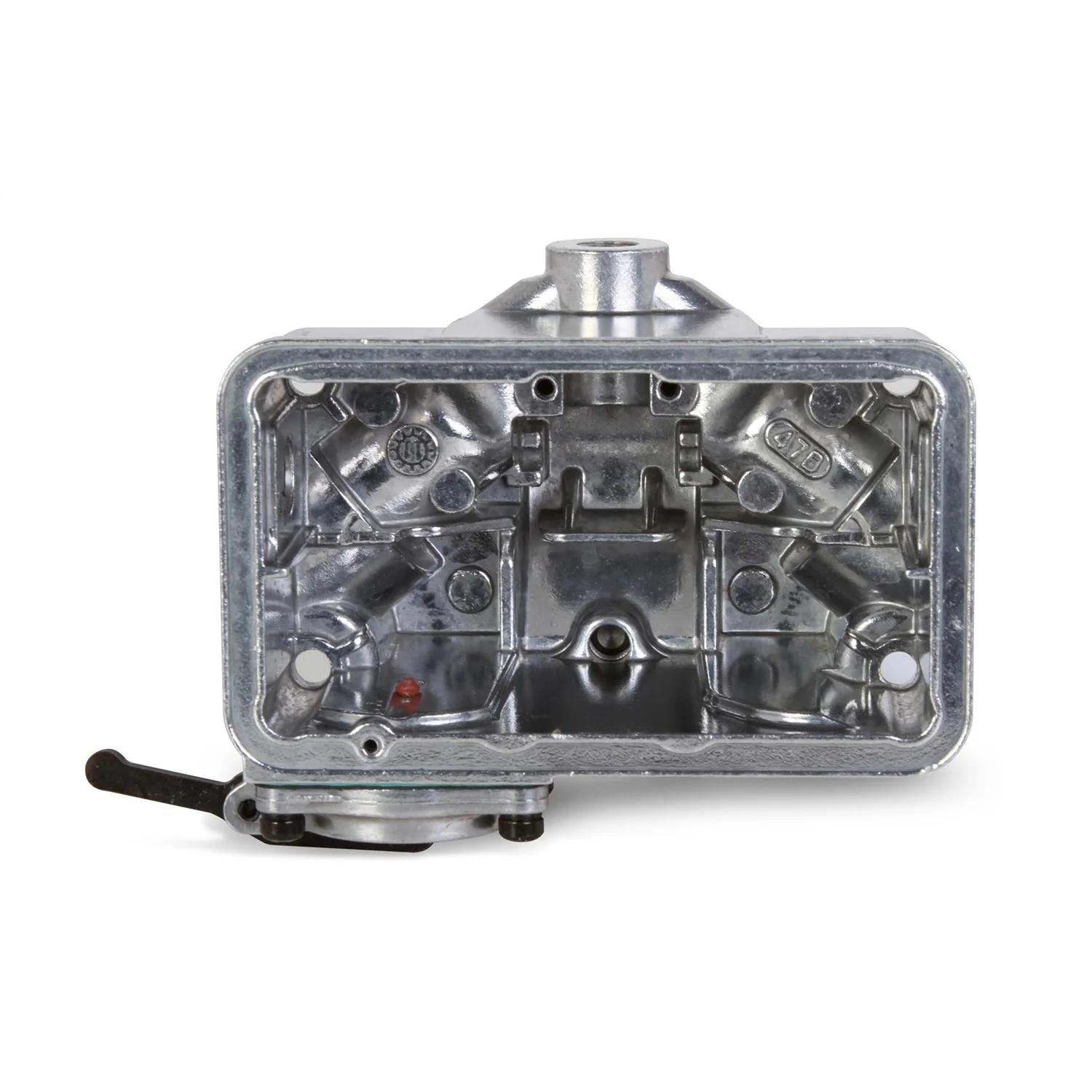

Fuel bowls provide 20% more fuel capacity while controlling slosh with internal baffling

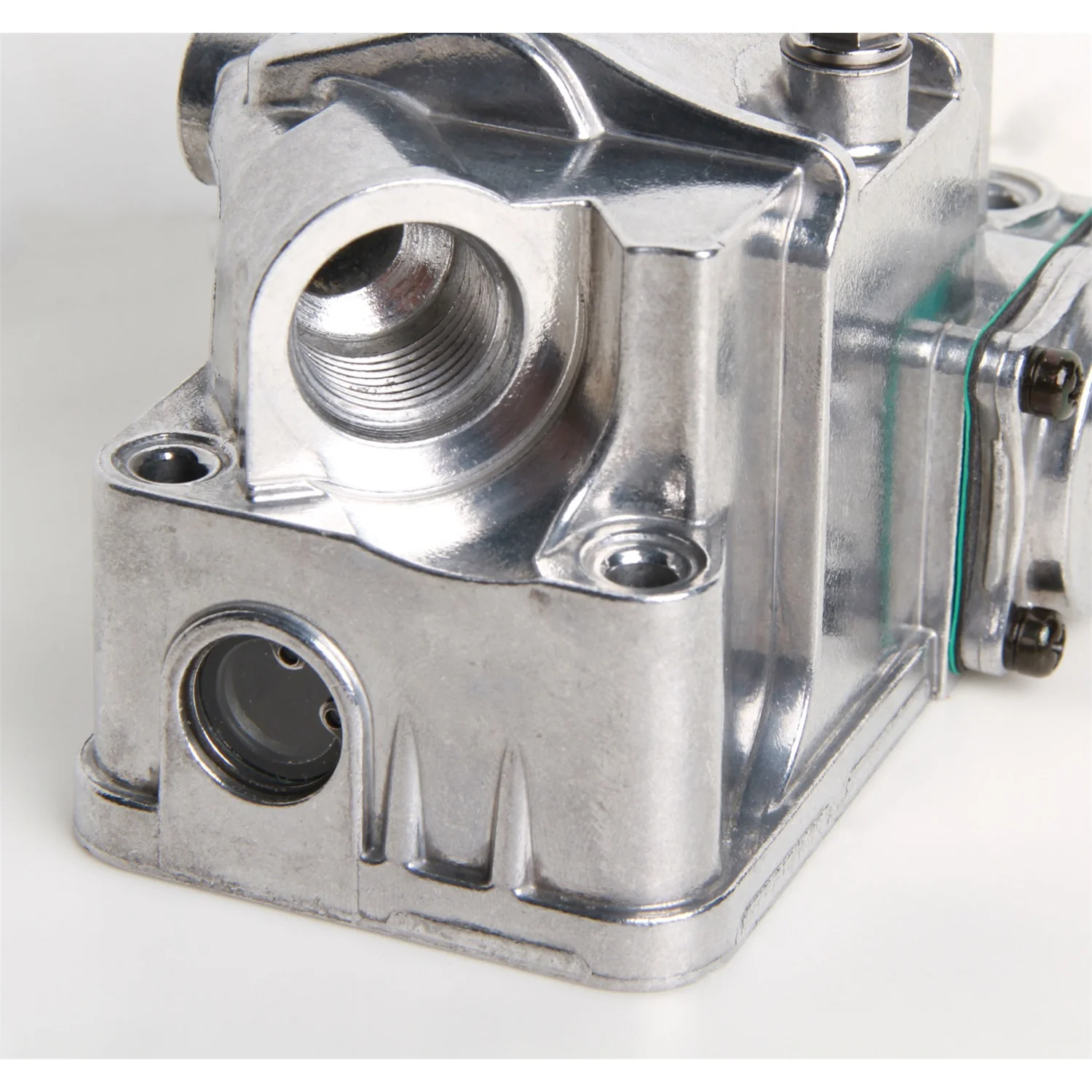

Clear sight windows on both sides of bowls for easy and safe fuel level adjustments

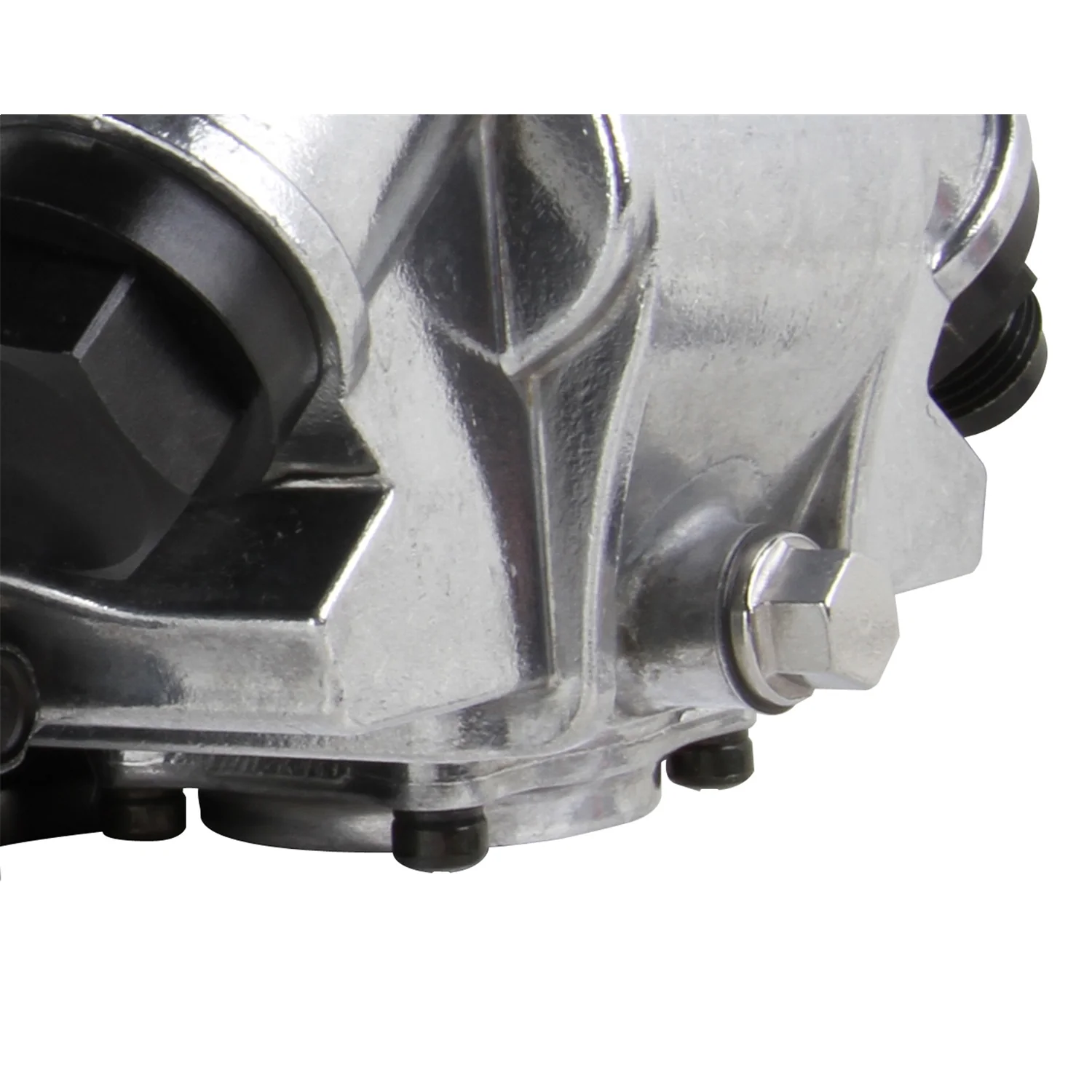

Built in drain plug in front center of bowl provides easy access to empty contents of bowl

-8 (o-ringed) inlet threads offer a large variety of plumbing options and can be plumbed from either side

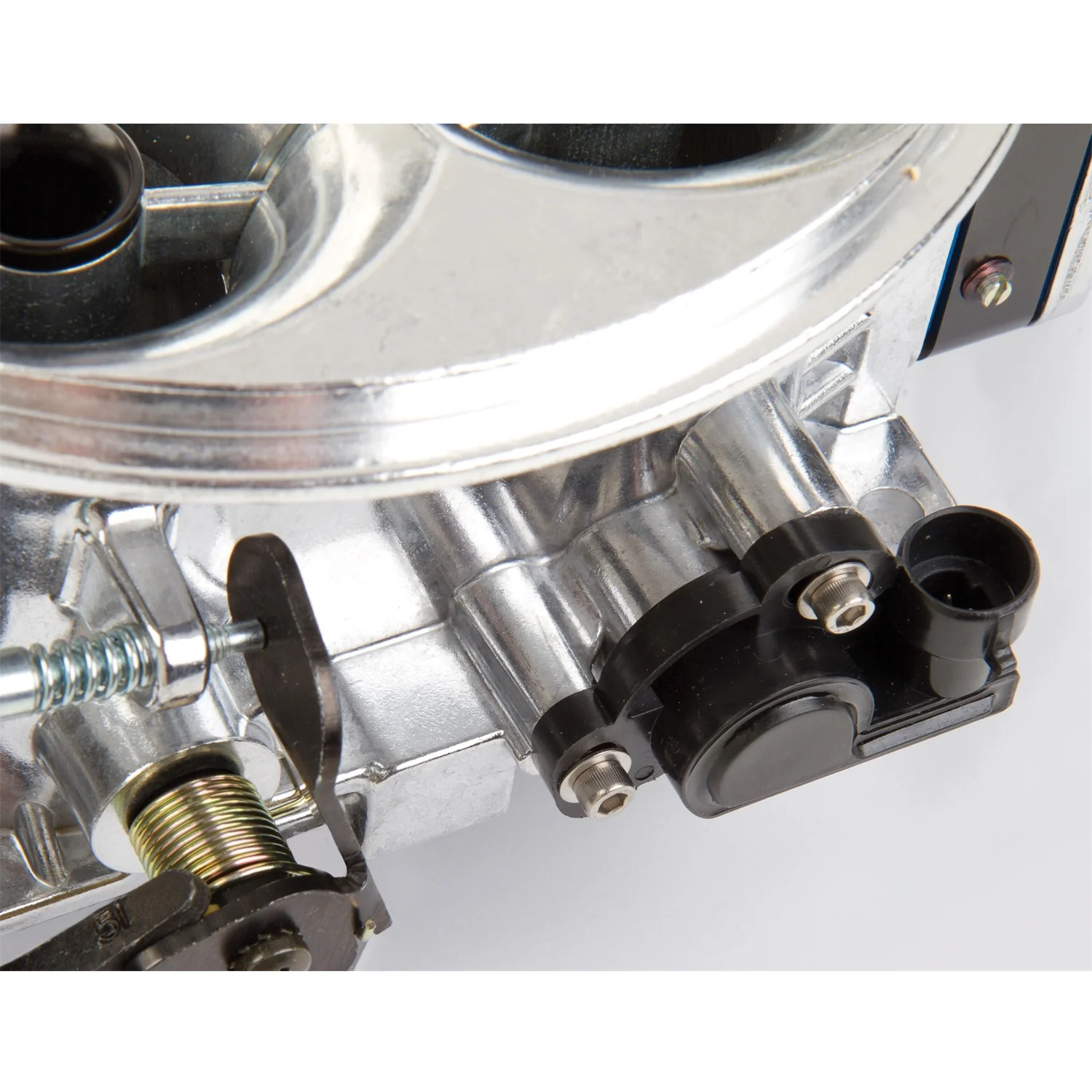

Factory ready TPS mounting points for use with data acquisition systems (Holley TPS P/N 534-214 available)

Knurled (hand adjustable) primary and secondary curb idle screws allow for easy idle adjustment without the use of tools

Contoured hex head squirter screws for streamlined airflow

Fully adjustable stainless steel external linkage can be adjusted for 1:1 progressive, or soft progressive throttle activation. No linkage parts under the carburetor

100% wet-flow tested by Holley technicians to assure it arrives ready to run!

Product Description:

Carburetor

Gen 3 Ultra Dominator

Model 4500

4-Barrel

1050 CFM

Dominator Flange

No Choke

Mechanical Secondary

Dual Inlet

Aluminum

Black Anodied / Tumble Polished

Sold Individually
